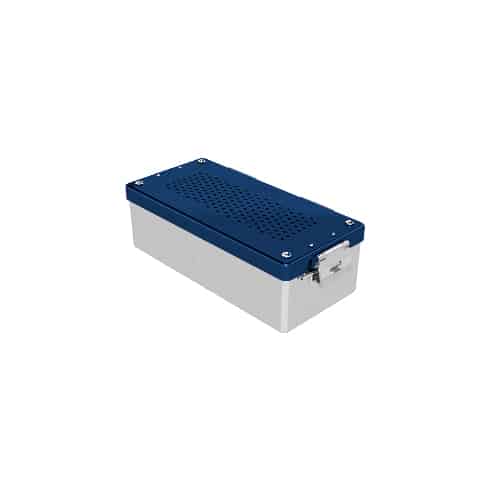

Mini Sterilization Container
01 Overview
Mini sterilization container systems are used to sterilize, store and transport implants, surgical instruments, surgical equipment and textiles. It consists of two main parts: container and lid. The main bodies of boxes and lids are pressed from 1050 quality aluminum as a single piece and no welding is used during the production of boxes and lids. Decorative anodization is performed to increase the strength of the box and cover surfaces against external factors. There are color options on the lids. There are holes for air on the lid surface, a silicone seal that provides air and water seal on the inside edge, a lockable stainless steel/aluminum/plastic filter holder with a sealing seal around it, which holds the filters placed in the central position on the inside of the cover to filter the air that passes through the cover holes into the box, spring locks on both sides of the each side of the box there are the label attachment compartments and the parts of the lock through which the plastic disposable security lock passes. Silicone mat, sheet baskets, wire baskets, paper filters, PTFE filters and labels are used as auxiliary materials along with containers. They are manufactured in various types and sizes that are pre-designed according to the needs of the users. There are options for hole and no hole boxes and filters and filter holders used in the lid are used in the hole boxes
02 Details
| outside dimensions / mm | outside dimensions / mm | |||||
300x140x50 |
300x140x70 |
|||||
| COLOUR | Non-Perforated | Perforated | | | COLOUR | Non-Perforated | Perforated |
| GRAY | O 410.04 | O 411.04 | | | GRAY | O 410.04 | O 411.07 |
| YELLOW | O 420.04 | O 421.04 | | | YELLOW | O 420.04 | O 421.07 |
| RED | O 430.04 | O 431.04 | | | RED | O 430.04 | O 431.07 |
| BLUE | O 440.04 | O 441.04 | | | BLUE | O 440.04 | O 441.07 |
| GREEN | O 450.04 | O 451.04 | | | GREEN | O 450.04 | O 451.07 |
| BLACK | O 460.04 | O 461.04 | | | BLACK | O 460.04 | O 461.07 |
| outside dimensions / mm | ||
300x140x100 |
||
| COLOUR | Non-Perforated | Perforated |
| GRAY | O 410.04 | O 411.10 |
| YELLOW | O 420.04 | O 421.10 |
| RED | O 430.04 | O 431.10 |
| BLUE | O 440.04 | O 441.10 |
| GREEN | O 450.04 | O 451.10 |
| BLACK | O 460.04 | O 461.10 |
